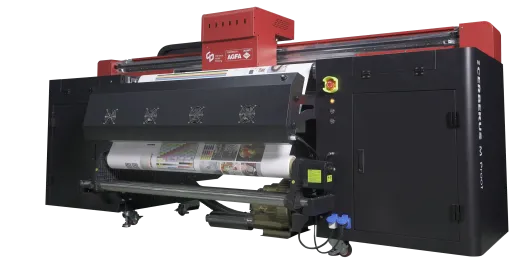

Cerberus M Proof

Efficient production process software with integrated color management and quality control provides a relatively low operational cost for the digital work of short-run lengths. Provide designers a broad space of imagination to explore new business opportunities and business modes.

Cerberus M Proof is suitable for decor design and proofing.Cerberus M Proof is a flexible, value-for-money device that requires only modest power and space and can be used in an ordinary office to help you expand your decorative paper business.
null
Key benefits
The unique vacuumed mesh belt.
Automatic printhead maintenance system.
Optional two feeding rolls.
Stainless steel printhead.
Only general power and space requirements.
GIP dedicated water-based ink.
Technical specifications
Model
Cerberus M Proof
Printing Technology
3 Industrial Piezoelectric printheads
Media Types
​Digital decor paper,Coated base paper with primer，PP paper,etc.
Maximum media weight
30 kg
Maximum media width
1270 mm
Inks
5-color water-based inks for decor papers (CRYKLk)
Quality mode（6pass two way）
9.6 m²/h（calculate with 1250mm width）
Proof mode（6pass single way）
5 m²/h（calculate with 1250mm width）
Dimensions（L × W × H）
2960 mm*820 mm*1550mm
Recommended oprating space(including printer)
3960 mm*2820 mm*1800mm
Weight
300kg
Temperature
21~28℃
Relative Humidity
40~60%RH，non-condensation
Electricity
220V AC+ground
Power
2kW
Dryer
5.4kW
Total
7.4kW
Software
Agfa Asanti(standard)，Third-party RIPs(Optional)
Negative Pressure System
Standard
Temperature Control System
Standard
Automatic Printhead Maintenance System
Standard
Simple dryer
Standard
Single roll printing
Standard
Two rolls feeding
Standard
