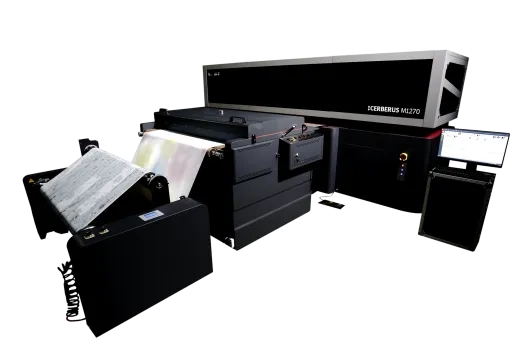

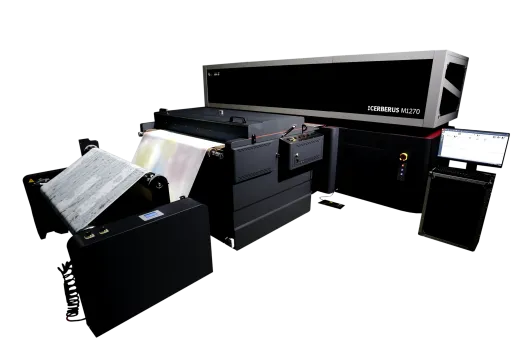

Cerberus M Series

Efficient production process software with integrated color management and quality control provides a relatively low operational cost for the digital work of short-run lengths. Provide designers a broad space of imagination to explore new business opportunities and business modes.

Cerberus M Series, is a multi-pass, water-based inkjet system for printing on decor paper used for interior decoration, such as laminate floors and furniture.It can print on rolls with a width of up to 225 cm and a weight of up to 600 kg.
null
Key benefits
Vaccum mesh belt platform, can enable smooth processing and avoid wrinkles.
Sectioned tension zones
Industrial grade dryer
Stainless steel printhead
Automatic printhead maintenance system
Agfa dedicated water-based ink
Technical specifications
Model
Cerberus M1270
Cerberus M1580
Cerberus M2250
Printing Technology
12 Industrial Piezoelectric printheads

12 Industrial Piezoelectric printheads

12 Industrial Piezoelectric printheads

Print Method
Roll to Roll or Roll to Sheet
Roll to Roll or Roll to Sheet
Roll to Roll or Roll to Sheet
Media Types
Digital decor paper,Coated base paper with primer
Digital decor paper,Coated base paper with primer
Digital decor paper,Coated base paper with primer
Maximum media weight
600 kg
600 kg
600 kg
Maximum media width
1270 mm
1270 mm
1270 mm
Inks
5-color water-based inks for decor papers (CRYKLk)
5-color water-based inks for decor papers (CRYKLk)
5-color water-based inks for decor papers (CRYKLk)
Speed mode
93 m²/h
110 m²/h
148 m²/h
Normal mode
72 m²/h
85 m²/h
115 m²/h
Quality mode
50 m²/h
59 m²/h
80 m²/h
Proof mode
25 m²/h
30 m²/h
40 m²/h
Temperature
18~24℃
18~24℃
18~24℃
Relative Humidity
40~60%RH, non-condensation
40~60%RH, non-condensation
40~60%RH, non-condensation
Software
Agfa Asanti(standard),Third-party RIPs(Optional)
Agfa Asanti(standard),Third-party RIPs(Optional)
Agfa Asanti(standard),Third-party RIPs(Optional)
