Cerberus UV3200

One-stop solution includes high-quality UV ink, special adhesive, efficient workflow software and reliable equipment。Provide designers a broad space of imagination to explore new business opportunities and business modes.

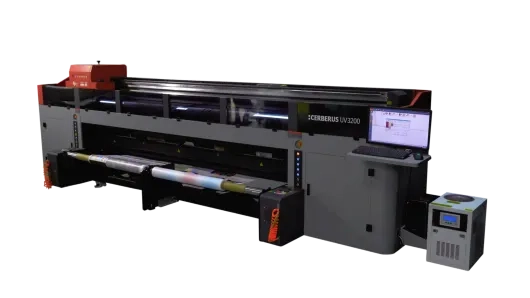

Cerberus UV3200 is designed for printing on PVC used for laminate floors and furniture.It can print on two rolls at a time –each can be up to 1.4 m wide and weigh up to 600 kg.
null
Key benefits
Water-cooled print tale, can keep the printing zone at room temperature to avoid wrinkles.
Independent tension controlled to assure tight and straight rewinding.
Two transport rollers, ensuring media feeding smooth and accurately.
Industrial-grade print heads bring stable and reliable colors and sharp images with perfect printing quality.
Perfect droplet control, ensuring high print quality.
Special adhesive solves the adhesion problem.
Automatic printhead maintenance system, ensuring readiness to work at any time.
UV ink obtained the highest category of GREENGUARD Gold certification.
Technical specifications
Model
Cerberus UV3200
Print Mode
Industrial piezoelectric printhead, water-cooled print table
Print Mode
Roll to Roll
Media Type
A wide range of flexible materials
Maximum Media Weight
Dual-roll(Standard),each up to 600kg
Maximum Media Width
1400mm(per roll)
Ink
UV Ink（CRYKLk）
Speed Mode
38 m²/h（Calculated at single roll with 1m width）
63 m²/h（Calculated at dual roll with each 1m width）
Normal Mode
33 m²/h（Calculated at single roll with 1m width）
50 m²/h（Calculated at dual roll with each 1m width）
Quality Mode
20 m²/h（Calculated at single roll with 1m width）
33 m²/h（Calculated at dual roll with each 1m width）
Dimension(length*width*height)
1730mm*5510mm*1750mm
Weight
2500kg
Temperature
18~24℃
Relative Humidity
40~60%RH,non-condensation
Power
4.5kW
Power（Water-cooled unit）
1.5kW
Software
Agfa Asanti(standard)，Third-party RIPs(Optional)
