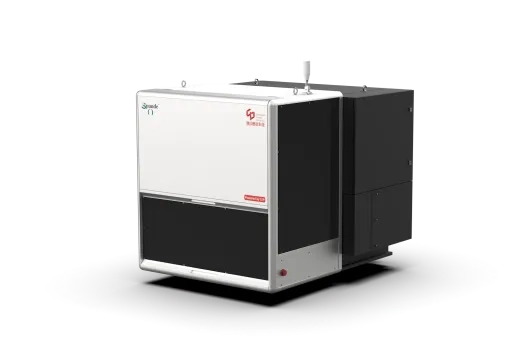

Falcon Series

Movable digital printing platform can customize the digital printing sequence according to actual production requirements. It can be installed on existing flexo printing lines. Spot color matching function, with an inbuilt Pantone color library.

Whether it is complex label printing needs or high precision requirements, it can easily complete tasks with unimaginable speed and precision, greatly improving production efficiency.
null
Key benefits
Highly flexible feeding system,suitable for all materials for 150-450mm wide label printing
Resolution up to 1200 X 1200 dpi
It can meet the printing requirements at 80m/min high speed
Coating, Foil-stamping, varnishing, laminating, cutting, as you customize
Movable digital printing platform
Spot color matching
Broad color gamut UV ink, vivid colors
It can be installed onto existing flexo printing line
Technical specifications
Model
Falcon 330 HD
Falcon 450 HD
Falcon 330C4 HD
Falcon 450C4 HD
Printing Technology
Piezoelectric Inkjet
Piezoelectric Inkjet
Piezoelectric Inkjet
Piezoelectric Inkjet
Color Configuration
W
W
CMYK
CMYK
Max. Speed
50 m/min
50 m/min
80 m/min
80 m/min
Resolution
1200*1200dpi
1200*1200dpi
1200*1200dpi
1200*1200dpi
Ink Type
UV ink
UV Ink
UV Ink
UV Ink
Curing Method
UV LED
UV LED
UV LED
UV LED
Media Width
150 - 340 mm
220 - 450 mm
150 - 340 mm
220 - 450 mm
Max. Print Width
320 mm
426 mm
320 mm
426 mm
Media Thickness
50 - 400 μm
50 - 400 μm
50 - 400 μm
50 - 400 μm
Media Type
PET, BOPP, PE, BOPA, PP, Coated paper, Synthetic paper, Art paper, etc
PET, BOPP, PE, BOPA, PP, Coated paper, Synthetic paper, Art paper, etc
PET, BOPP, PE, BOPA, PP, Coated paper, Synthetic paper, Art paper, etc
PET, BOPP, PE, BOPA, PP, Coated paper, Synthetic paper, Art paper, etc
Power Supply
380 V
380 V
380 V
380 V
Power
18 - 80kW
18 - 80kW
18 - 80kW
18 - 80kW
Compressed air
> 0.65 Mpa
> 0.65 Mpa
> 0.65 Mpa
> 0.65 Mpa
Air consumption
> 10 L/min
> 10 L/min
> 10 L/min
> 10 L/min
Operation Temperature
20 - 27 ℃
20 - 27 ℃
20 - 27 ℃
20 - 27 ℃
Operation Humidity
40 - 70 % RH
40 - 70 % RH
40 - 70 % RH
40 - 70 % RH
