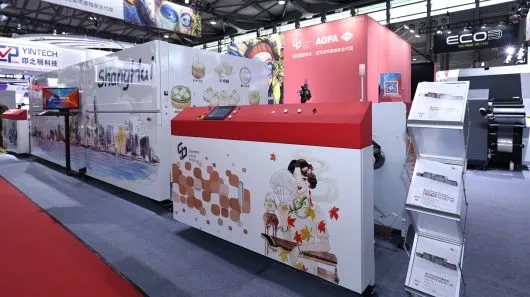

Harpy R520C4 HD

Suitable for printing applications such as publications, documents, digital printing, educational materials and package instructions.

With the latest APPE printing engine and Agfa’s over 30 years of color management and workflow control experience, printing becomes simpler, more precise and more reliable.
null
Key benefits
Highly flexible paper feeding unit that supports media with feeding width up to 535mm.
Resolution up to 1200×1200dpi。
Printing speed up to 150m/min.
GIP’s water-based pigment inks achieve eco-friendly performance with superior stability.
Adopts a fully integrated Agfa Apogee prepress workflow system.
Each printhead is controlled by a dedicated driver board for greater printing efficiency and easier maintenance.
Technical specifications
Model
Harpy R520C4 HD
Print Method
Four-colors;Double-side
Color Configuration
CMYK
Max. Speed
150 m/min
Resolution
1200*600dpi/1200*900dpi/1200*1200dpi
Registration Accuracy
±0.2 mm
Ink Type
Water-based environmental protection ink
Drying Method
Infrared drying system + Hot wind
Media Width
535 mm
Max. Print Width
535 mm
Media Weight
45 - 165 g/m²
Media Type
Digital printing papers, offset papers, inkjet coated papers, newspaper, coated paper, etc
Max. Media Roll Diameter
1200 mm
Mechanical Platform
380V，Max.94kW
Printing System
220V，4 - 8kW
Temperature
22 - 26 ℃
Humidity
40 - 70 % RH，Best: 55%RH
Unwinding System
Standard
Printing System
Standard
Roll Paper Buffer System
Standard
Roll Paper Cropping and Stacking System
Standard
Infrared Drying System
Standard
Roll Paper Guiding System
Standard
Roll Paper De-static and Dust Removal System
Standard
