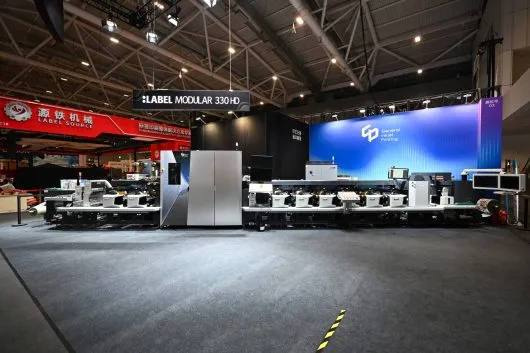

Label Modular Series

Hybrid printer, modular production process collocation, to meet the complex requirements of label printing. The combined structure can be flexibly configured according to the actual production process. High-speed full-color printing, easy conversion of substrates and workflow flexibility, gain maximum advantage in digital label printing.

Whether it is complex label printing needs or high precision requirements, it can easily complete tasks with unimaginable speed and precision, greatly improving production efficiency.
null
Key benefits
Highly flexible feeding system,suitable for all materials for 150-450mm wide label printing
Resolution up to 1200 X 1200 dpi
It can meet the printing requirements at 75m/min high speed.
Coating, Foil-stamping, varnishing, laminating, cutting, as you customize
Hybrid printer, modular design
It can upgrade addtional three spot colors, the max support of 8 colors
Insetter tracking sensor achieves accurate secondary surprint, comprehensively solves the problem of printing registration.
Broad color gamut UV ink, vivid colors.
Technical specifications
Model
Label Modular 330
Label Modular 450
Label Modular 330 HD
Label Modular 450 HD
Printing Technology
Piezoelectric Inkjet
Piezoelectric Inkjet
Piezoelectric Inkjet
Piezoelectric Inkjet
Print Method
One – Side
One – Side
One – Side
One – Side
Color Configuration
Up to 8 colors
(CMYK+W+OGV)
Up to 8 colors
(CMYK+W+OGV)
Up to 8 colors
(CMYK+W+OGV)
Up to 8 colors
(CMYK+W+OGV)
Number Of Channels
8
8
8
8
Max. Speed
47m/min(600*600dpi)
23m/min(600*1200dpi)
47m/min(600*600dpi)
23m/min(600*1200dpi)
80m/min
80m/min
Resolution
600*600dpi/600*1200dpi
600*600dpi/600*1200dpi
1200*1200dpi
1200*1200dpi
Ink Type
UV Ink
UV Ink
UV Ink
UV Ink
Curing Method
UV LED/
Mercury lamp(Optional)
UV LED/
Mercury lamp(Optional)
UV LED/
Mercury lamp(Optional)
UV LED/
Mercury lamp(Optional)
Media Width
150 - 340 mm
220 - 450 mm
150 - 340 mm
220 - 450 mm
Max. Print Width
316 mm
425 mm
320 mm
426 mm
Media Thickness
50 - 400 μm
50 - 400 μm
50 - 400 μm
50 - 400 μm
Media Type
PET, BOPP, PE, BOPA, PP, Coated paper, Synthetic paper, Art paper, etc
PET, BOPP, PE, BOPA, PP, Coated paper, Synthetic paper, Art paper, etc
PET, BOPP, PE, BOPA, PP, Coated paper, Synthetic paper, Art paper, etc
PET, BOPP, PE, BOPA, PP, Coated paper, Synthetic paper, Art paper, etc
Max. Media Roll Diameter
700 mm
700 mm
700 mm
700 mm
Power Supply
380 V
380 V
380 V
380 V
Power
18-80 kW
18-80 kW
18-80 kW
18-80 kW
Compressed air
> 0.65 Mpa
> 0.65 Mpa
> 0.65 Mpa
> 0.65 Mpa
Air consumption
> 10 L/min
> 10 L/min
> 10 L/min
> 10 L/min
Operation Temperature
20 - 27 ℃
20 - 27 ℃
20 - 27 ℃
20 - 27 ℃
Operation Humidity
40 - 70 % RH
40 - 70 % RH
40 - 70 % RH
40 - 70 % RH
Skew Adjustment System
Standard
Standard
Standard
Standard
Electrostatic Dust Removal
Standard
Standard
Standard
Standard
Water Cooling System
Standard
Standard
Standard
Standard
Coating
Optional
Optional
Optional
Optional
Varnishing
Optional
Optional
Optional
Optional
Cold-foil Stamping
Optional
Optional
Optional
Optional
Hot-foil Stamping
Optional
Optional
Optional
Optional
Visual Inspection
Optional
Optional
Optional
Optional
