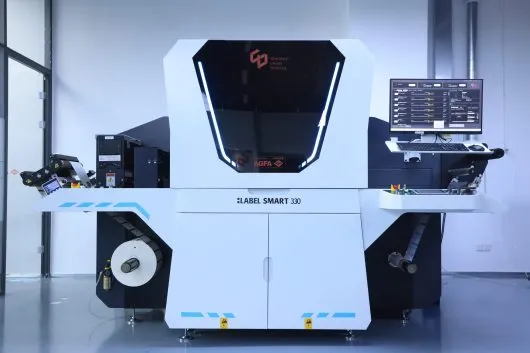

Label Smart Series

Allowing for small-format digital printing and personalized full-color inkjet coding.High cost-effectiveness and reasonable cost of use. Simple and user-friendly printing operation reduces operating costs and brings in higher profits. High-speed, full-color printing, easily transitions in substrate and workflow which allows maximum advantage in digital label printing.

Entry-level digital label printer, Label Smart series's four-color plus white color configuration to meet the basic digital label printing needs, for traditional label printing customers to provide short order supplement.
null
Key benefits
Highly flexible feeding system,suitable for all materials for 110-330mm wide label printing
Resolution up to 600 X 1200 dpi
It can meet the printing requirements at 50m/min high speed.
Automatic winding and unwinding system can effectively prevent the substrate from shifting.
Insetter tracking sensor achieves accurate secondary surprint, comprehensively solves the problem of printing registration.
Each printhead has its own board to control, makes printhead printing more efficiency and easier to maintain.
Broad color gamut UV ink, vivid colors.
LED cold light curing unit, energy saving and high efficiency.
Technical specifications
Model
Label Smart 216
Label Smart 330
Label Smart 216S
Label Smart 330S
Printing Technology
Piezoelectric Inkjet
Piezoelectric Inkjet
Piezoelectric Inkjet
Piezoelectric Inkjet
Print Method
One – Side
One – Side
One – Side
One – Side
Color Configuration
CMYK/ CMYK+W/ CMYK+W+W
CMYK/ CMYK+W/ CMYK+W+W
CMYK/ CMYK+W/ CMYK+W+W
CMYK/ CMYK+W/ CMYK+W+W
Number Of Channels
6
6
6
6
Max. Speed
47m/min(600*600dpi)
23m/min(600*1200dpi)
47m/min(600*600dpi)
23m/min(600*1200dpi)
50m/min(600*600dpi)
25m/min(600*1200dpi)
50m/min(600*600dpi)
25m/min(600*1200dpi)
Resolution
600*600dpi/600*1200dpi
600*600dpi/600*1200dpi
600*600dpi/600*1200dpi
600*600dpi/600*1200dpi
Ink Type
UV In
UV Ink
UV Ink
UV Ink
Curing Method
UV LED
UV LED
UV LED
UV LED
Media Width
110 - 330 mm
110 - 330 mm
110 - 330 mm
110 - 330 mm
Max. Print Width
212 mm
316 mm
212 mm
316 mm
Media Thickness
50 - 400 μm
50 - 400 μm
50 - 400 μm
50 - 400 μm
Media Type
PET, BOPP, PE, BOPA, PP, Coated paper, Synthetic paper, Art paper, etc
PET, BOPP, PE, BOPA, PP, Coated paper, Synthetic paper, Art paper, etc
PET, BOPP, PE, BOPA, PP, Coated paper, Synthetic paper, Art paper, etc
PET, BOPP, PE, BOPA, PP, Coated paper, Synthetic paper, Art paper, etc
Max. Media Roll Diameter
600 mm
600 mm
600 mm
600 mm
Power Supply
380 V
380 V
380 V
380 V
Power
15 kW
18 kW
15 kW
18 kW
Compressed air
> 0.65 Mpa
> 0.65 Mpa
> 0.65 Mpa
> 0.65 Mpa
Air consumption
> 10 L/min
> 10 L/min
> 10 L/min
> 10 L/min
Operation Temperature
20 - 27 ℃
20 - 27 ℃
20 - 27 ℃
20 - 27 ℃
Operation Humidity
40 - 70 % RH
40 - 70 % RH
40 - 70 % RH
40 - 70 % RH
Skew Adjustment System
Standard
Standard
Standard
Standard
Electrostatic Dust Removal
Standard
Standard
Standard
Standard
Water Cooling System
Standard
Standard
Standard
Standard
