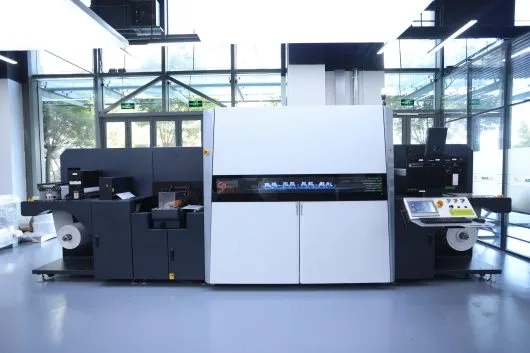

Label Ultra Series

Movable digital printing platform can customize the digital printing sequence according to actual production requirements. It can be installed on existing flexo printing lines. Spot color matching function, with an inbuilt Pantone color library.

Whether it is complex label printing needs or high precision requirements, it can easily complete tasks with unimaginable speed and precision, greatly improving production efficiency.
null
Key benefits
Highly flexible feeding system,suitable for all materials for 110-330mm wide label printing
Resolution up to 1200 X 1200 dpi
It can meet the printing requirements at 75m/min high speed.
Automatic winding and unwinding system can effectively prevent the substrate from shifting.
Insetter tracking sensor achieves accurate secondary surprint, comprehensively solves the problem of printing registration.
Each printhead has its own board to control, makes printhead printing more efficiency and easier to maintain.
Broad color gamut UV ink, vivid colors.
LED cold light curing unit, energy saving and high efficiency.
Technical specifications
Model
Label Ultra 330 HD
Printing Technology
Piezoelectric Inkjet
Print Method
One – Side
Color Configuration
CMYK/ CMYK+W/ CMYK+W+OGV
Number Of Channels
8
Max. Speed
75m/min(CMYK)
50m/min(CMYK+W)
Resolution
1200*1200dpi
Ink Type
UV Ink
Curing Method
UV LED/Mercury lamp(Optional)
Media Width
110 - 330 mm
Max. Print Width
320 mm
Media Thickness
50 - 400 μm
Media Type
PET, BOPP, PE, BOPA, PP, Coated paper, Synthetic paper, Art paper, etc
Max. Media Roll Diameter
700 mm
Power Supply
380 V
Power
40 kW
Compressed air
> 0.65 Mpa
Air consumption
> 10 L/min
Operation Temperature
20 - 27 ℃
Operation Humidity
40 - 70 % RH
Skew Adjustment System
Standard
Electrostatic Dust Removal
Standard
Water Cooling System
Standard
